PANEL-SHOP

OUR PANEL SHOP BUILDS PANELS TO ESA AND CSA STANDARDS

Therefore we can provide our panels with either ESA or CSA certification or both if required. All of our panels are custom built to our customers standards and requirements.  A large percentage of our panels are RPU Control Panels designed to our customers requirements using the RPU of their choice.  We also build Pump Control Panels: single phase, three phase, soft start, and VFD; Stand Alone Pumping Station Panels containing both hydro service and pump controls; Emergency Backup Float Control Panels; Local Control Panels and Stations, some are prewired  with just selector switches and push buttons and some have small RPU's or remote I/O of some kind. If you require something completely different we can build it for you, either from a written description or from a base line schematic. As with the RPU's we have many alternate suppliers for internal panel equipment.

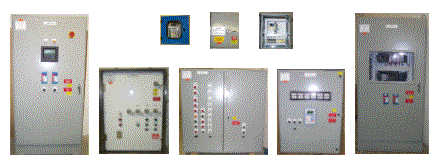

All of our panel drawings are currently done in AutoCad r.2002 to our high standard. Below are some samples of the panels that we build. For all  of the samples we will give a brief description of the panel and show basic electrical AutoCad drawings (panel layout & wiring diagram) and where available pictures of the finished product. The AutoCad drawings on this web are provided in both .jpg format and .dwf format.  The .dwf drawings are much clearer as they are vector drawings much like true AutoCad .dwg drawings. To view the drawings in .dwf format you will have to have VOLO VIEW EXPRESS which is a free download from  Autodesk. Just click on the link below to download it from Autodesk.  To view the .jpg image just click on the thumbnail image and it will open in your browser. If you have VOLO VIEW EXPRESS installed click in the title below the thumbnail and the drawing will be displayed in the VOLO VIEW EXPRESS plug in.

ALL OF OUR PANELS ARE FULLY TESTED BEFORE THEY ARE SHIPPED TO SITE. A STRICT QUALITY CONTROL SHEET MUST BE FILLED OUT AND SIGNED BY THE INSPECTOR AND THE PANEL BUILDER.

SINGLE PHASE STARTER PANEL

THREE PHASE STARTER PANEL

SOFT START STARTER PANEL

STAND ALONE PUMPING STATION PANELS

ALLEN-BRADLEY SLC PANEL

GE-FANUC PLC PANEL

BRISTOL BABCOCK RTU PANEL

CONTROL MICROSYSTEMS RTU PANEL
